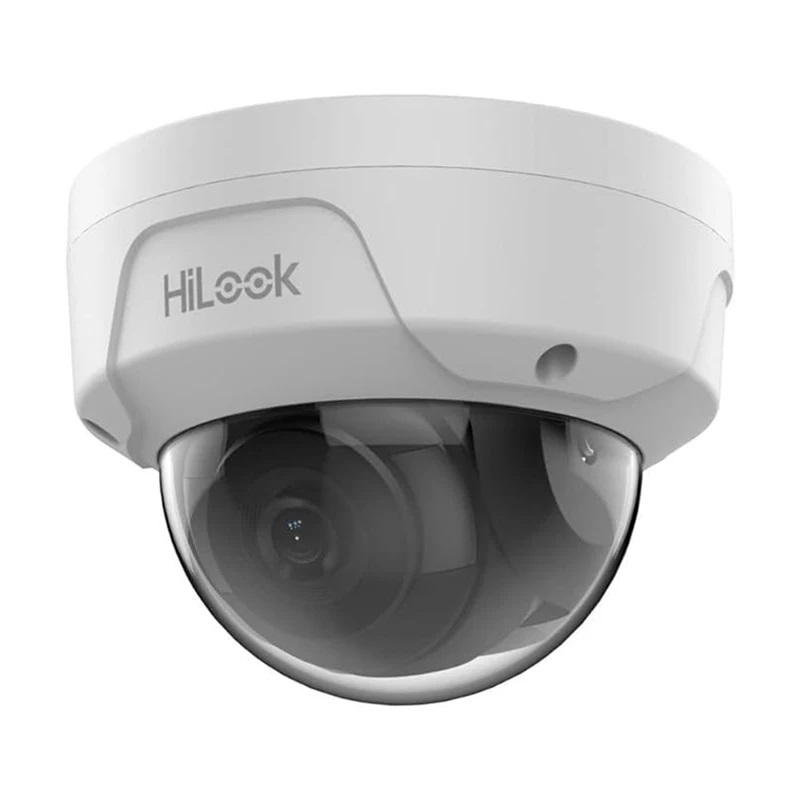

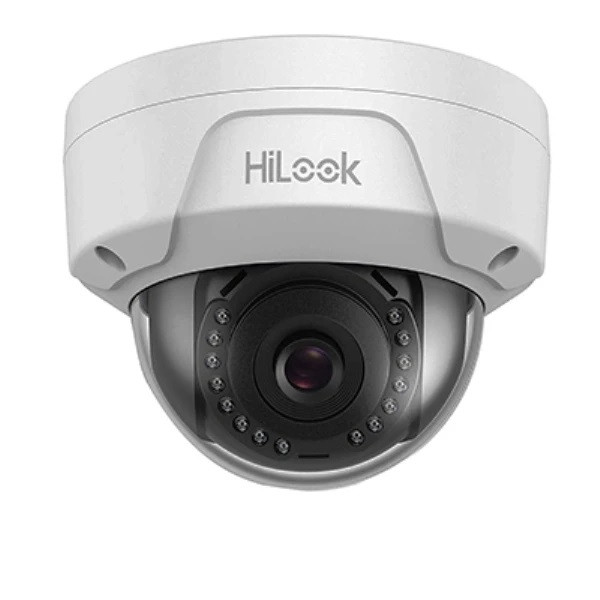

دوربین دام تحت شبکه 5 مگاپیکسل IPC-D150H

مشخصات فنی



Camera:

Image Sensor1/2.7″ progressive scan CMOS

Min. IlluminationColor: 0.01 Lux @(F1.2, AGC ON), 0.028Lux @ (F2.0, AGC ON)

Shutter Speed1/3 s to 1/100, 000 s

Slow ShutterYes

Wide Dynamic Range120 dB

Angle AdjustmentPan: 0° to 355°, tilt: 0° to 70°

DNR3D DNR

Day & NightIR cut filter

Auto-IrisNo

ApertureF2.0

FocusNo

FOV2.8 mm, horizontal FOV 100°, vertical FOV 55°, diagonal FOV 117° 4 mm, horizontal FOV 77°, vertical FOV 42°, diagonal FOV 88° 6 mm, horizontal FOV 51°, vertical FOV 28°, diagonal FOV 58°

Lens MountM12

Focal Length2.8 mm, 4 mm, 6 mm

Alarm TriggerMotion detection, video tampering alarm, illegal login

Network StorageNAS (NFS, SMB/CIFS)

ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour

APIONVIF (PROFILE S, PROFILE G), ISAPI

Simultaneous Live ViewUp to 6 channels

User/HostUp to 32 users 3 levels: Administrator, Operator and User

ClientiVMS-4200, Hik-Connect, iVMS-5200, iVMS-4500

Web BrowserIE8+, Chrome 31.0-44, Firefox 30.0-51, Safari 8.0+

General FunctionAnti-flicker, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter

Firmware Version5.5.3

Image EnhancementBLC, 3D DNR

Image SettingSaturation, brightness, contrast, sharpness, AGC, white balance adjustable by client software or web browser

Day/Night SwitchAuto, scheduled, day, night

Max. Resolution2560 × 1920

Main Stream 50 Hz: 20 fps (2560 × 1920) 25 fps (2560 × 1440, 1920 × 1080, 1280 × 720) 60 Hz: 20 fps (2560 × 1920) 30 fps (2560 × 1440, 1920 × 1080, 1280 × 720)

Sub-Stream 50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360) 60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360)

IR RangeUp to 30 m

Wavelength850 nm

Communication Interface1 RJ45 10M/100M self-adaptive Ethernet port

ResetYes

Power Supply12 VDC ± 25%, 5.5 mm coaxial power plug PoE (802.3af, class 3)

Power Consumption And Current12 VDC, 0.4 A, Max: 5 W PoE: (802.3af, 36 V to 57 V), 0.2 A to 0.13 A, Max: 7 W

MaterialWithout –M model: Bubble: plastic, front cover: plastic, bottom base: metal –M model: Bubble: plastic, front cover: metal, bottom base: metal

DimensionsCamera: Ø 111 mm × 82.4 mm (Ø 4.4″ × 3.2″) With package: 134 mm × 134 mm × 108 mm (5.3″ × 5.3″ × 4.3″)

WeightWithout –M model: Camera: approx. 410 g (0.9 lb.) With package: approx. 610 g (1.3 lb.) –M model: Camera: approx. 455 g (1 lb.) With package: approx. 655 g (1.4 lb.)

Protection LevelIP67, IK10

Operating Condition-30 °C to 50 °C (-22 °F to 122 °F), humidity: 95% or less (non-condensing)

H.264+Main stream supports

H.265+Main stream supports

H.264 TypeBaseline Profile/Main Profile/High Profile

Video CompressionMain stream: H.265/H.264 Sub stream: H.265/H.264/MJPEG

H.265 TypeMain Profile

Video Bit Rate32 Kbps to 8 Mbps

Region Of Interest1 fixed region for main stream and sub-stream
