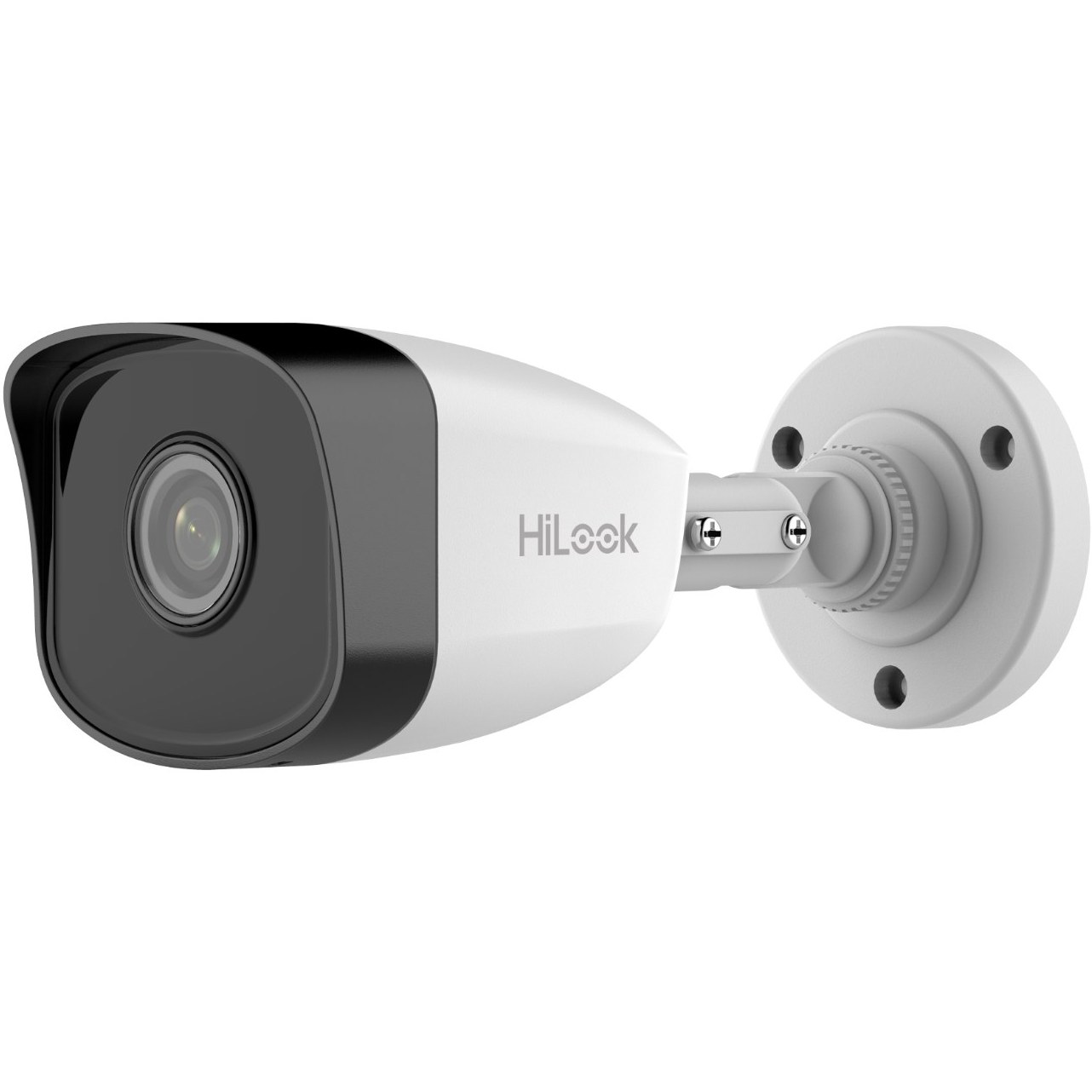

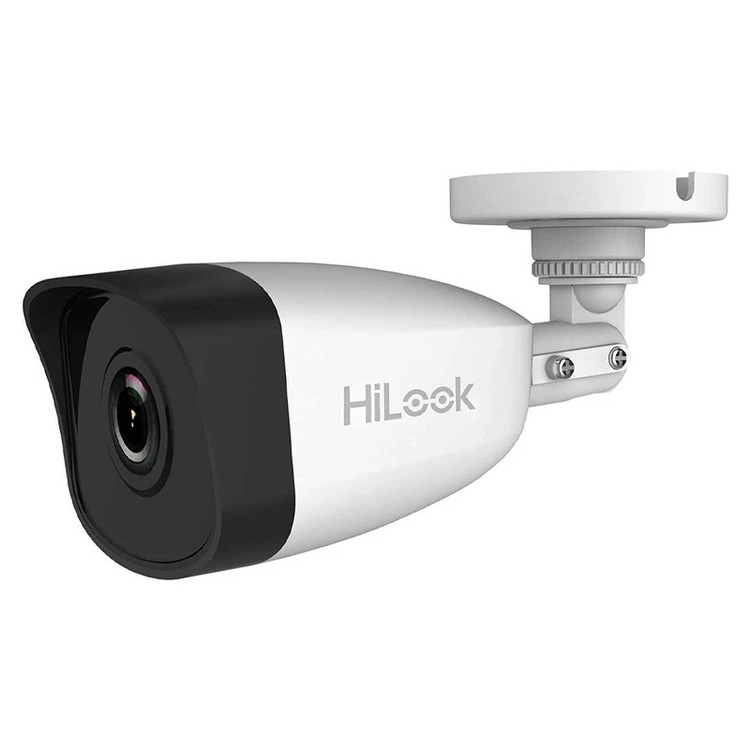

دوربین بالت تحت شبکه 5 مگاپیکسل IPC-B150H

مشخصات فنی محصول

Camera

• Image Sensor1/2.7″ progressive scan CMOS
• Max. Resolution 2560 × 1920
• Min. IlluminationColor: 0.01 Lux @(F2.0, AGC ON), B/W: 0 Lux with IR
• Shutter Time1/3 s to 1/100, 000 s
• Day & NightIR cut filter
• Angle AdjustmentPan: 0° to 360°, tilt: 0° to 180°, rotate: 0° to 360°

Lens

• Focal Length & FOV

  2.8 mm, horizontal FOV 98.0°, vertical FOV 53.1°, diagonal FOV 114.7°

  4 mm, horizontal FOV 78.7°, vertical FOV 43.1°, diagonal FOV 92.3°

• Lens MountM12
• FocusFixed
• ApertureF2.0
• Lens TypeFixed focal lens, 2.8 and 4 mm optional
• Iris TypeFixed

Illuminator

• Supplement Light TypeIR
• Supplement Light RangeUp to 30 m
• IR Wavelength850 nm
• Smart Supplement LightYes

Video

• Main Stream

50 Hz: 20 fps (2560 × 1920)

25 fps (2560 × 1440, 1920 × 1080, 1280 × 720)

60 Hz: 20 fps (2560 × 1920)

30 fps (2560 × 1440, 1920 × 1080, 1280 × 720)

• Sub-Stream

50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360)

60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360)

Video Compression

• Main stream:

H.265+/H.265/H.264+/H.264

• Sub-stream:

H.265/H.264/MJPEG

Network

• ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP™, SMTP, IGMP, QoS, IPv6, Bonjour, IPv4, UDP, SSL/TLS
• Simultaneous Live ViewUp to 6 channels
• APIOpen Network Video Interface, ISAPI
• User/HostUp to 32 users. 3 levels: administrator, operator and user
• ClientiVMS-4200, Hik-Connect
• Web Browser

  Plug-in required live view: IE 10+

  Plug-in free live view: Chrome 57.0+, Firefox 52.0+

  Local service: Chrome 57.0+, Firefox 52.0+


• Image Settings

  Saturation, brightness, contrast, sharpness, AGC, white balance adjustable by client

  software or web browser

• Day/Night SwitchAuto, Schedule, Day, Night
• Wide Dynamic Range (WDR)120 dB
• Image EnhancementBLC, 3D DNR

Interface

• Ethernet Interface1 RJ45 10 M/100 M self-adaptive Ethernet port

Event

• Basic EventMotion detection, video tampering alarm, exception
• LinkageUpload to FTP, notify surveillance center, send email

General

• Power

  12 VDC ± 25%, 0.4 A, max. 5 W, Ø5.5 mm coaxial power plug

  PoE: 802.3af, Class 3, 36 V to 57 V, 0.2 A to 0.15 A, max. 6.5 W

• Dimension181.6 mm × 71.4 mm × 66.7 mm (7.1″ × 2.8″ × 2.6″)
• Package Dimension216 mm × 121 mm × 118 mm (8.5″ × 4.8″ × 4.6″)
• WeightApprox. 270 g (0.6 lb.)
• With Package WeightApprox. 490 g (1.1 lb.)
• Storage Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity: 95% or less (non-condensing)
• Startup and Operating Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity: 95% or less (non-condensing)
• LanguageEnglish, Ukrainian
• General FunctionAnti-flicker, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter

Approval

• EMCFCC SDoC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); IC VoC (ICES-003: Issue 6, 2016); KC (KN 32: 2015, KN 35: 2015)
• SafetyUL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014); CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014); BIS (IS 13252(Part 1):2010+A1:2013+A2:2015)
