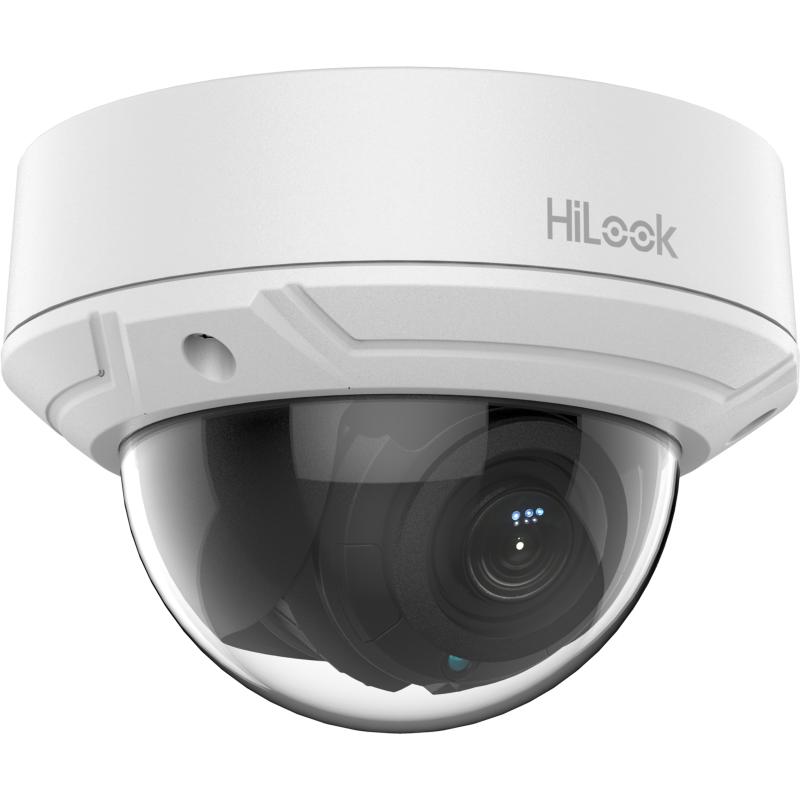

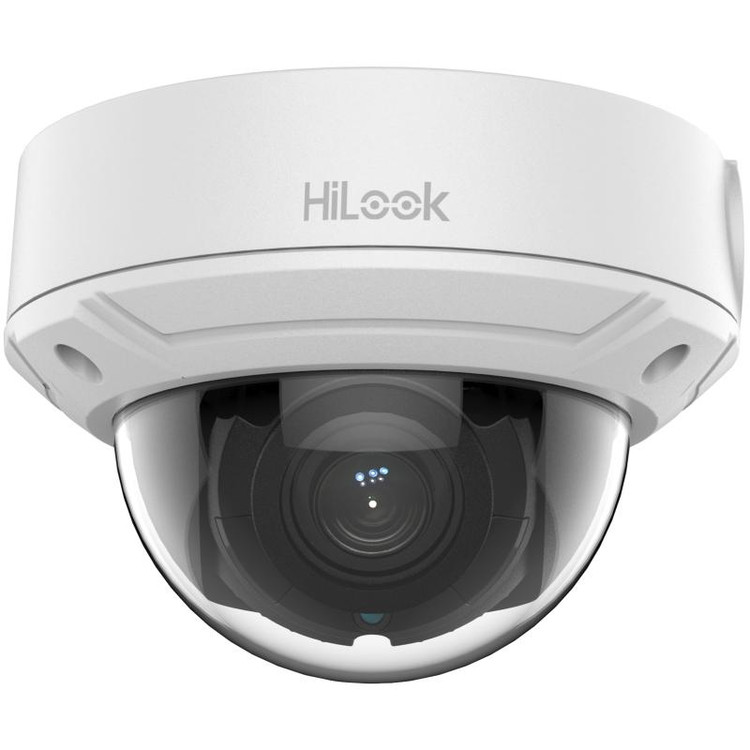

دوربین دام تحت شبکه 4 مگاپیکسل IPC-D640H-V
دوربین هایلوک مدل IPC-D640H-V از دوربین های دام تحت شبکه تولید شده توسط شرکت هایک ویژن می باشد . این دوربین دارای لنز متغییر ( وریفوکال ) است که با فواصل کانونی 2.8 الی 12 میلیمتر می باشد . شما با استفاده از دوربین هایلوک مدل IPC-D640H-V تصاویر در شب هنگام را تا برد 30 متر دریافت خواهید کرد. دوربین 4 مگا پیکسل دام هایلوک دارای قابلیت HLC و BLC و WDR 120dB نیز برای بالابردن کیفیت تصویر و از بین بردن اثرات منفی نور شدید در این مدل از دوربین هایلوک تعبیه شده است. زاویه دیدی که با این دوربین میتوانید داشته باشید برای لنزهای 2.8 الی 12 میلیمتر 31 الی 102 درجه می باشد . این میزان پوشش برای فضاهای مختلف مناسب هستند. جنس بدنه دوربین دام هایک ویژن در این مدل از فلز بوده و از گزینههای عالی برای محیطهای داخلی است که با توجه به استاندارد حفاظتی IP67 و IK10 برای محیط خارجی نیز مناسب است.
ویژگی های دوربین
- نوع بدنه : دام
- کیفیت تصویر : 4 مگاپیکسلی
- نوع لنز: وریفوکال با فاصله کانونی 2.8-12 میلی متر
- برد دید در شب : IRه30 متر
- استاندارد IP67 و IK10
- قابلیت WDR
مشخصات فنی
Camera:
Image Sensor 1/3″ progressive scan CMOS
Min. Illumination Color: 0.01 Lux @(F1.2, AGC ON), 0.018Lux @ (F1.6, AGC ON)
Shutter Speed 1/3 s to 1/100, 000 s, support slow shutter
Slow Shutter Yes
Auto-Iris No
Day &Night IR cut filter
Digital Noise Reduction 3D DNR
WDR 120 dB
Angle Adjustment Pan: 0° to 355°, tilt: 0° to 70°, rotation: 0° to 360°
Lens:
Focal Length 2.8 to 12 mm
Aperture F1.6
Focus
-V: Manual
-Z: Auto
FOV
Horizontal field of view: 98°to 28°
Vertical field of view: 51°to 16°
Diagonal field of view: 115°to 32°
Lens Mount Φ14
IR:
IR Range Up to 30 m
Wavelength 850 nm
Compression Standard:
Video Compression Main stream: H.265/H.264
Sub stream: H.265/H.264/MJPEG
H.264 Type Baseline Profile/Main Profile/High Profile
H.264+ Main stream supports
H.265 Type Main Profile
H.265+ Main stream supports
Video Bit Rate 32 Kbps to 8 Mbps
Smart Feature-set
Region of Interest 1 fixed region for main stream and sub-stream
Image:
Max. Resolution 2560 × 1440
Main Stream
Max. Frame Rate
50Hz: 20fps (2560 × 1440), 25fps (2304 × 1296, 1920 × 1080, 1280 × 720)
60Hz: 20fps (2560 × 1440), 30fps (2304 × 1296, 1920 × 1080, 1280 × 720)
Sub-stream
Max. Frame Rate
50Hz: 25fps (640 × 480, 640 × 360, 320 × 240)
60Hz: 30fps (640 × 480, 640 × 360, 320 × 240)
Image Enhancement BLC, 3D DNR
Image Settings:
Saturation, brightness, contrast, sharpness, AGC, white balance adjustable by client software or
web browser
Day/Night Switch Auto, scheduled
Network
Network Storage Support Micro SD/SDHC/SDXC card (128G ), local storage and NAS (NFS,SMB/CIFS), ANR
Alarm Trigger Motion detection, video tampering alarm, network disconnected, IP address conflicted, illegal
login
Protocols TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP,
Specification
Available Models:
IPC-D640H-V (2.8 mm to 12 mm), IPC-D640H-Z (2.8 mm to 12 mm)
SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour
General Function One-key reset, anti-flicker, heartbeat, mirror, password protection, privacy mask, watermark, IP
address filter
Firmware Version 5.5.3
API ONVIF (PROFILE S, PROFILE G), ISAPI
Simultaneous Live View Up to 6 channels
User/Host
Up to 32 users
3 levels: Administrator, Operator and User
Client iVMS-4200, Hik-Connect, iVMS-5200
Web Browser IE8+, Chrome 31.0-44, Firefox 30.0-51, Safari 8.0+
Interface:
Communication Interface 1 RJ45 10M/100M self-adaptive Ethernet port
Video Output (Without -Z) 1Vp-p composite output (75 Ω/BNC)
Reset Button Yes
General:
Operating Conditions -30 °C to 50 °C (-22 °F to 122 °F), humidity: 95% or less (non-condensing)
Power Supply 12 VDC ± 25%, 5.5 mm coaxial power plug
PoE (802.3af, class 3)
Power Consumption and Current -Z: 12 VDC, 0.8 A, Max: 10 W; PoE: (802.3af, 36 V to 57 V), 0.35 A to 0.2 A, Max: 12 W
-V: 12 VDC, 0.5 A, Max: 6 W; PoE: (802.3af, 36 V to 57 V), 0.22 A to 0.14 A, Max: 8 W
Protection Level IP67, IK10
TVS 2000V lightning protection, surge protection and voltage transient protection
Material Metal & Plastic
Dimensions:
Camera: Ø 141 mm × 99.6 mm (Ø 5.6″ × 3.9″)
With package: 140 mm × 140 mm × 154 mm (5.5″ × 5.5″ × 6.1″)
Weight Camera: approx. 820 g (1.8 lb.)
With package: approx. 1200 g (2.6 lb.)
